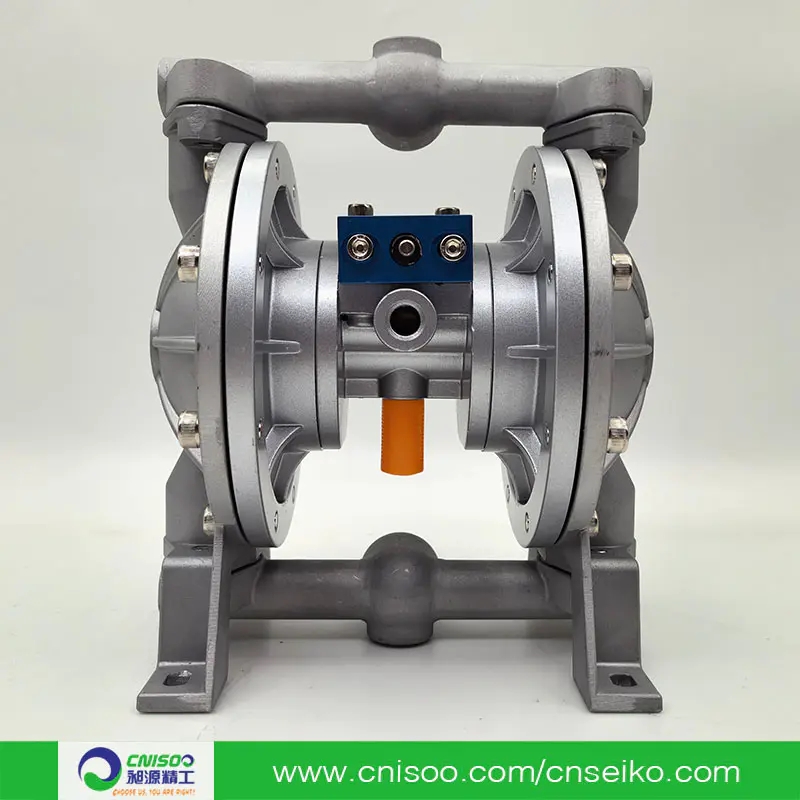

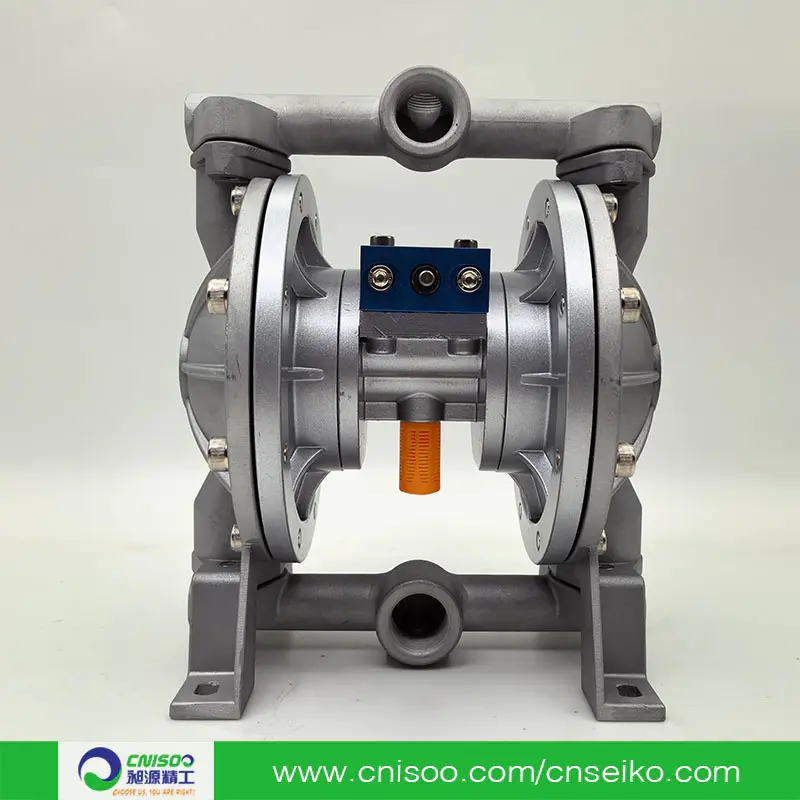

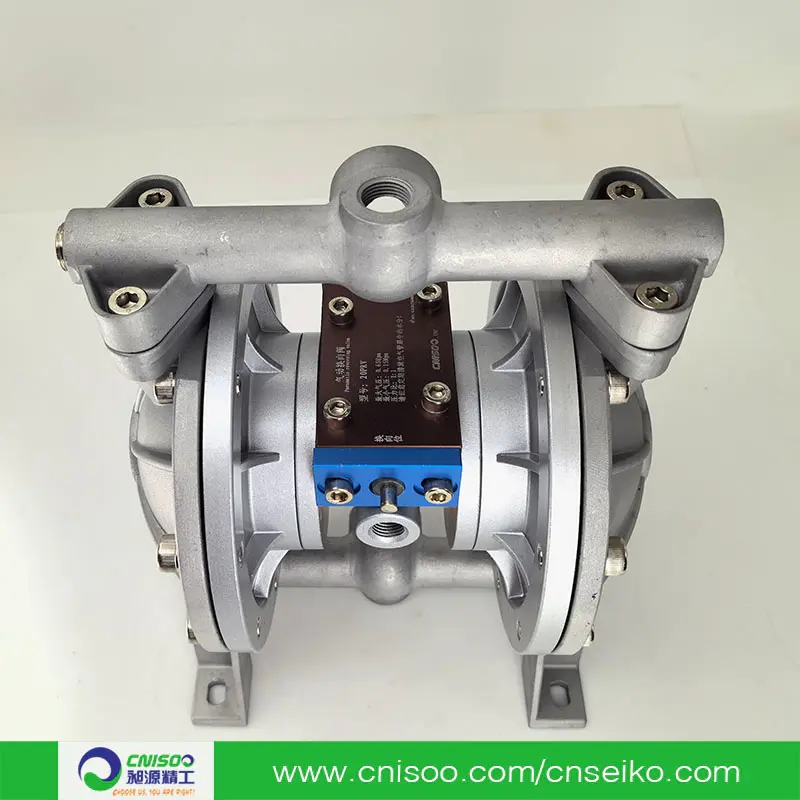

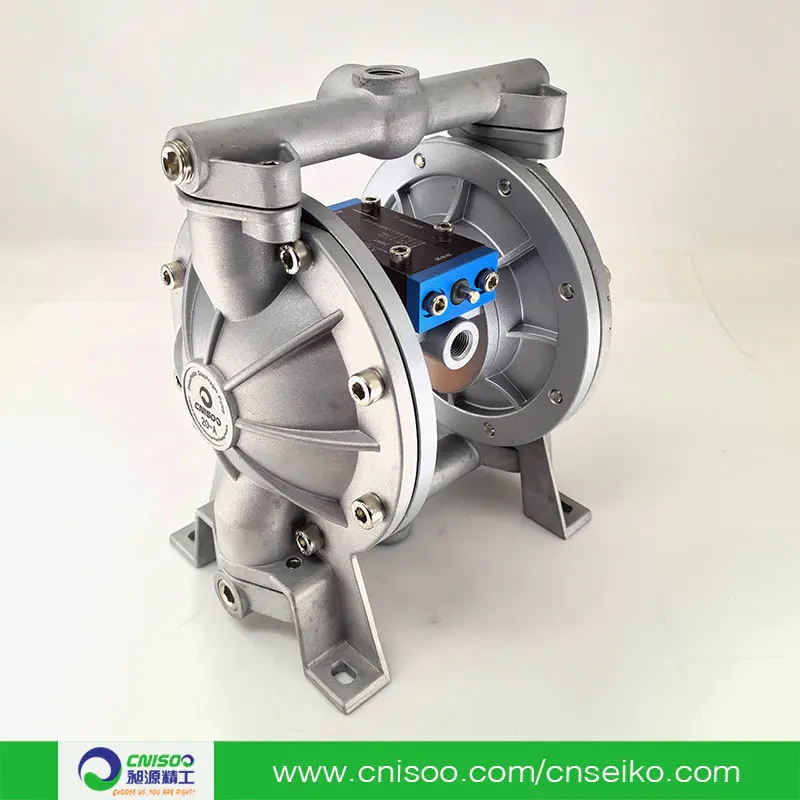

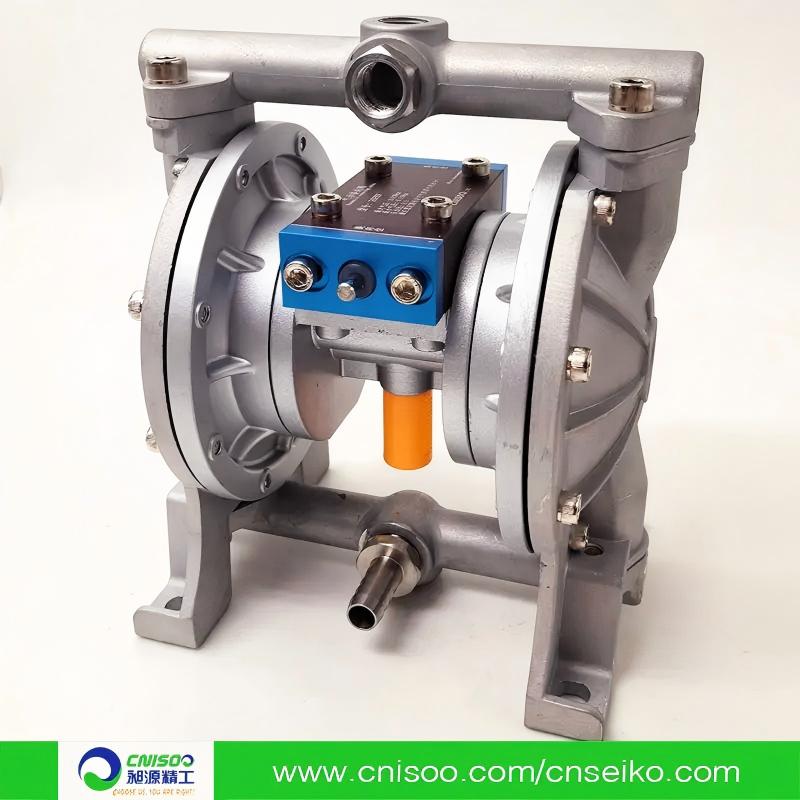

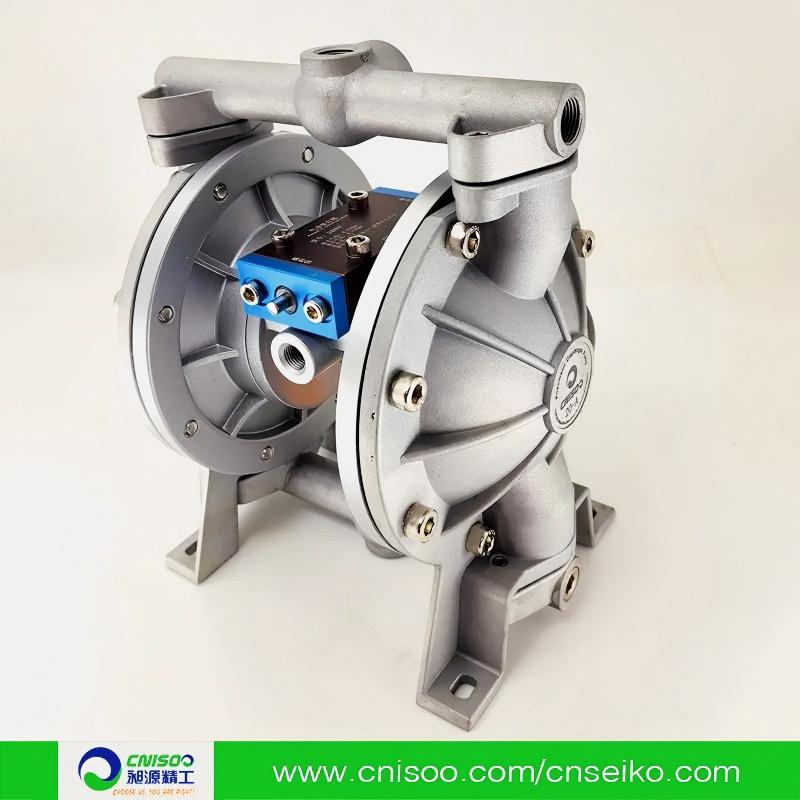

Air operated double diaphragm pumps
Pneumatic diaphragm pump
Pneumatic diaphragm pump
- 20A
- 288
- 1Pcs
- Payment before delivery
- 1-7 days
PRODUCT FEATURES
● The air operation valve of the double spool mechanism in the stable supply model has been improved to use the commutation more smoothly and reduce the commutation generating artery.

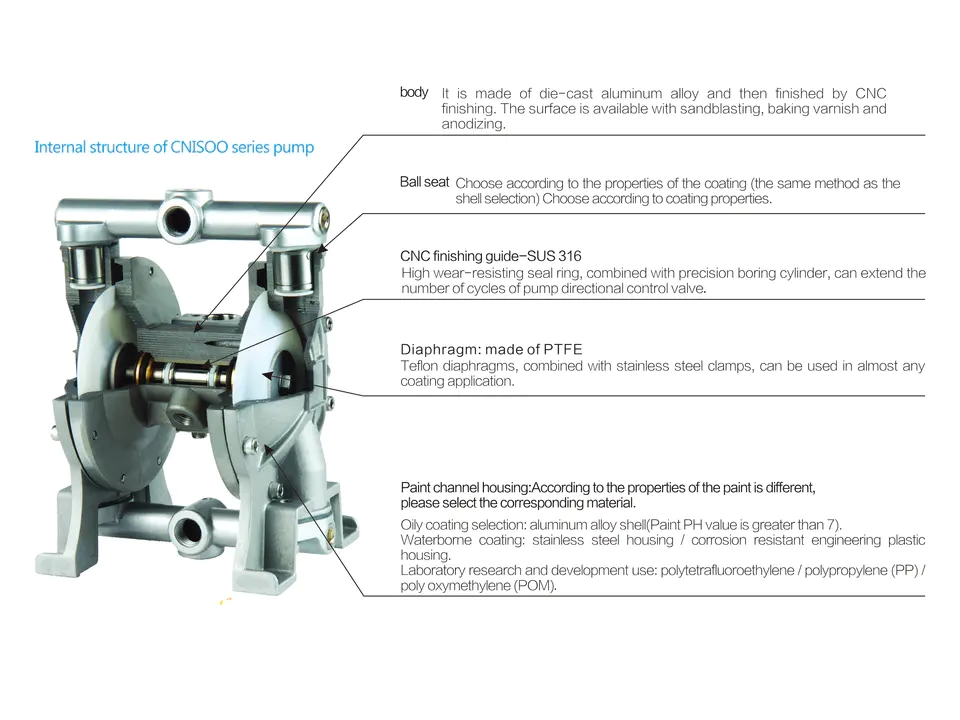

● The liquid part of the pump body is made of aluminum and stainless steel.
● Two diaphragm pump connecting rod at both ends of the rod, pressure pump body spit out liquid, simple structure.

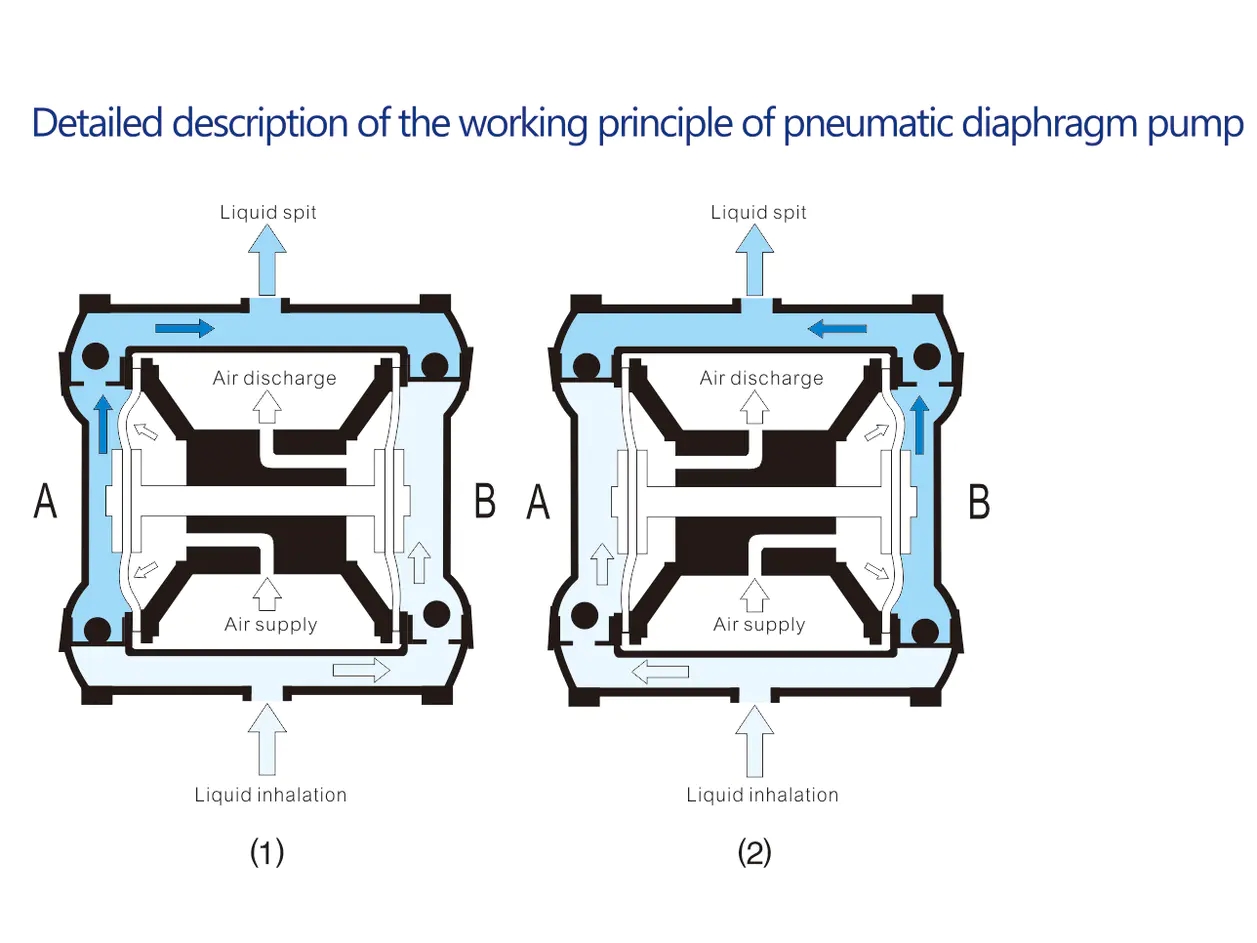

● Figure 1A side of the air chamber into the compressed air, the diaphragm pump left pressure liquid extrusion.
●The rod connects to the B-side diaphragm pump and moves to the left to suction fluid
When the rod moves to the far left, the air valve switches.
● Figure 2B side of the air room into the compressed air, the diaphragm pump to the right of the liquid extrusion.
● A side suction fluid
● The action is repeated, continuous inhalation/exhalation, stable exhalation without pulse.
● Die casting aluminum alloy production, CNC precision molding. Sandblasting, painting, anodizing treatment
All the data in the table are collected from CNISOO / CNSEIKO laboratory. The test fluid is tap water with PH = 7, the coating pressure is 1Bar, and the pipeline is directly connected. The atomized particle data is laser diffraction. Based on the approximate standard of total discharge (including circulation)
Form 1
Type of pump | 16A Series |
Total Amount Requested | ～25L/min |
Output Amount Each Cycle | 85mL/min |
300Cycle/min Output of Each 300 Cycle/min | ～25L/min |
Form 2
Model | 16A Series |
Pressure Rate | 1:1 |
Air Pressure Pange | 0.15～0.7MPa |
Max.Paint pressure | 0.7MPa |
Output Amount of Each Cycle | 150mL/Cycle |
Maximum Cycle | 200Cycle/min |
Max. Output | ～25L/min |
1 Output of Each 300 Cycle/min※1 | ～25L/min |
Standard Viscosity※ | 100Sec/NK-2 |
The data is the approximate standard of pump selection and does not represent the full performance of the paint.
Form 3
Type of pump | Pump-16A |
Main body material | Aluminum alloy |
Air lnlet size | G1/4 |
Liquid inlet size | G3/8 |
Liquid qutlet size | G3/8 |
Air pressure | 0.15～0.7Mpa |
Best air pressure | 0.3～0.4Mpa |
Pressure ratio | 1:1 |
Max.output | 25L/min |
Max.size for output particle | 1.5mm |
Temperature | 5～40℃ |
Net Weight of Pump | 5kg |
Dimensions | 535×400×250mm |
Other specifications can be customized
The pneumatic double diaphragm pump has simple structure and excellent durability, and can be used for various purposes from small amount painting to installation of multiple spray guns and coating transportation.

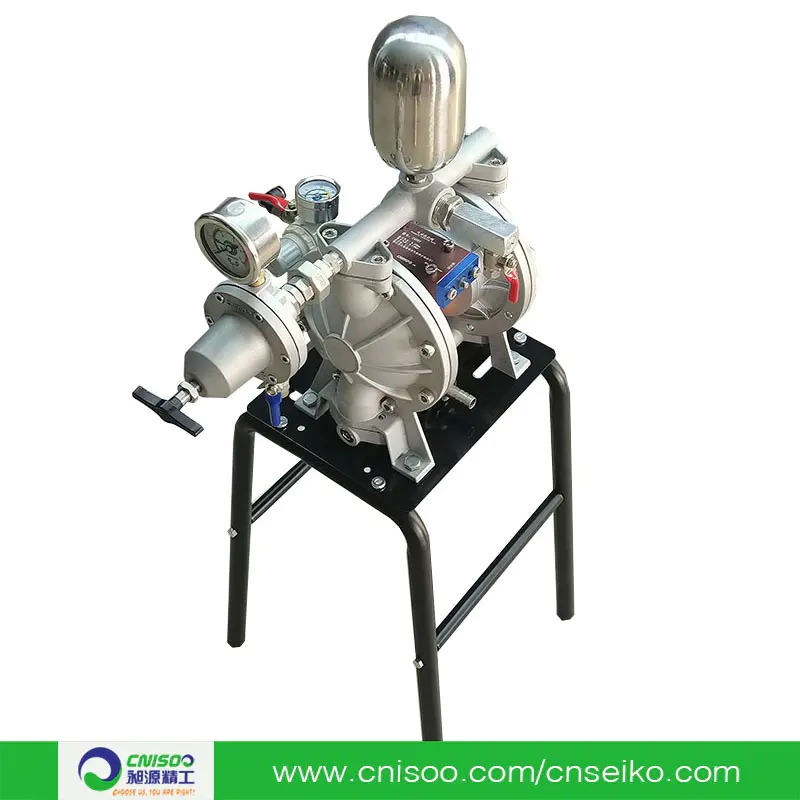

The paint pressure regulator ensures stable supply and achieves high quality spraying effect.
Pneumatic double acting piston pump with bellows seal structure, high pressure rate and large discharge performance, for high viscosity paint or multiple guns at the same time painting.
The pump body is durable, and the liquid part of the pump body is made of aluminum material.
Paint interior surface mirror processing, shorten the change of paint color and cleaning time, the amount of cleaning liquid and waste liquid discharge.
