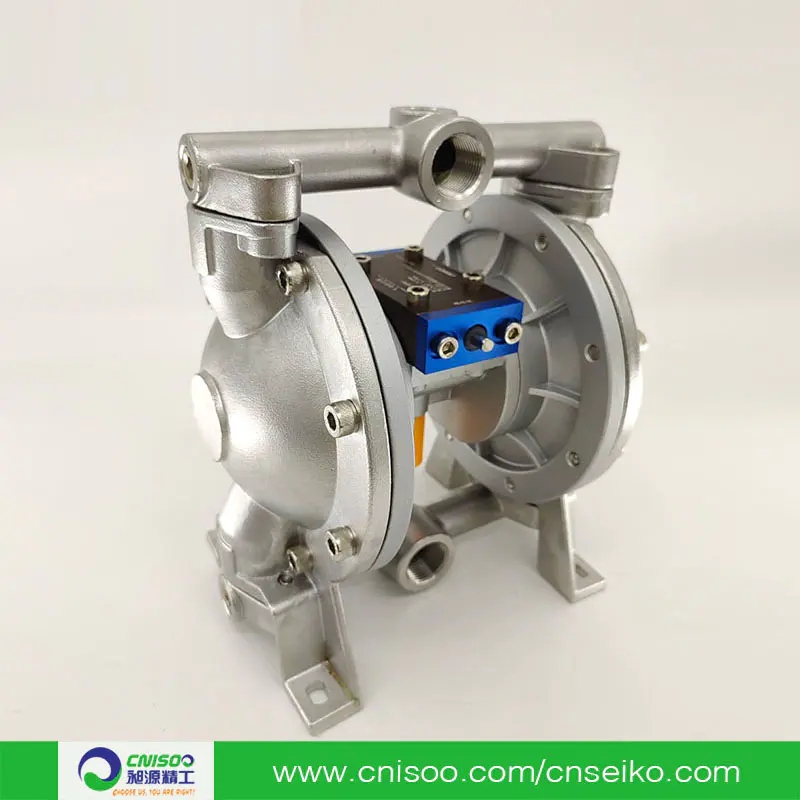

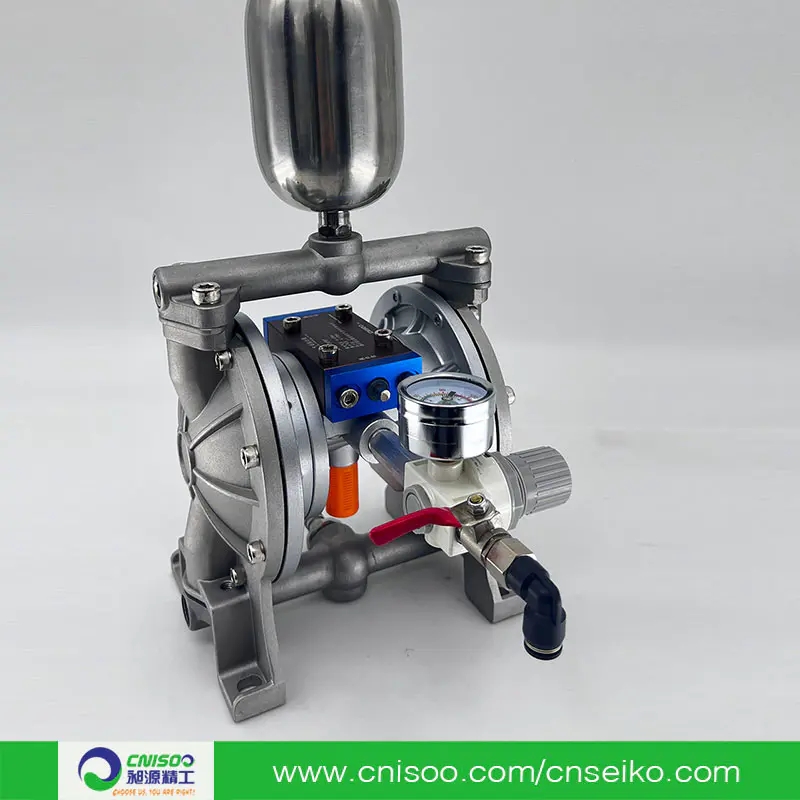

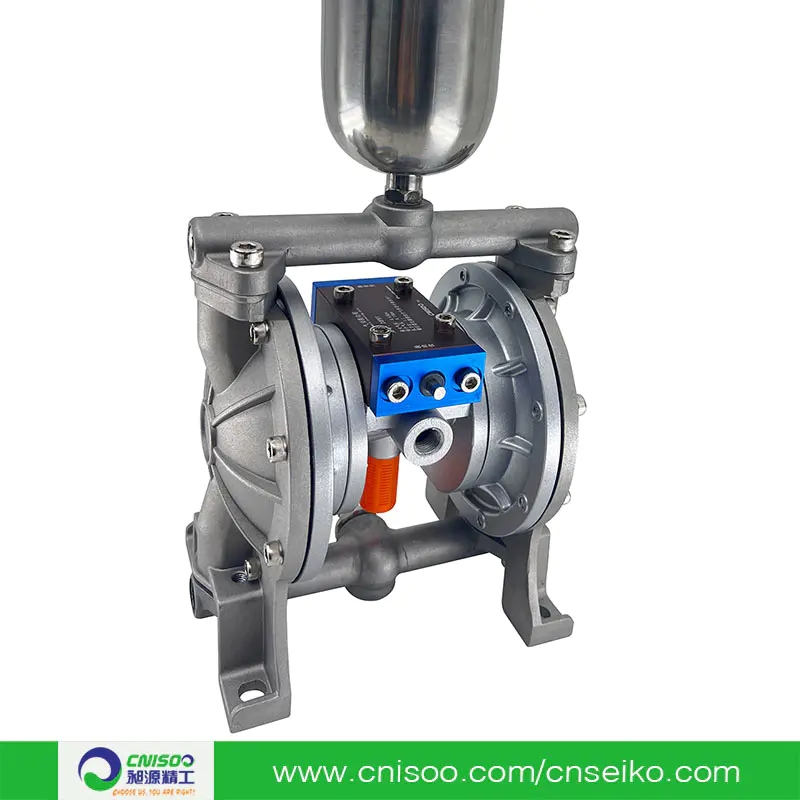

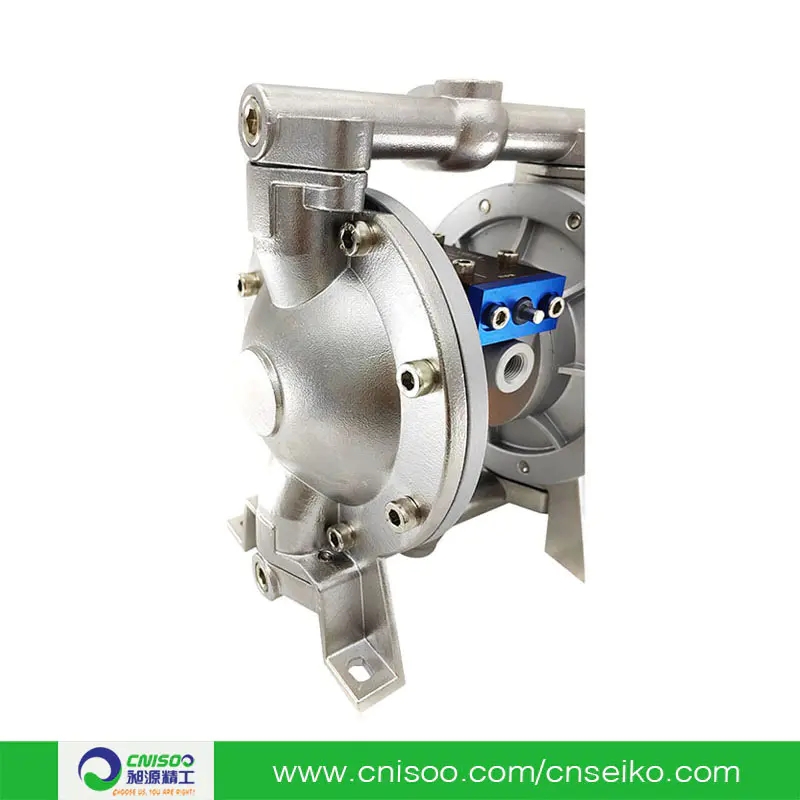

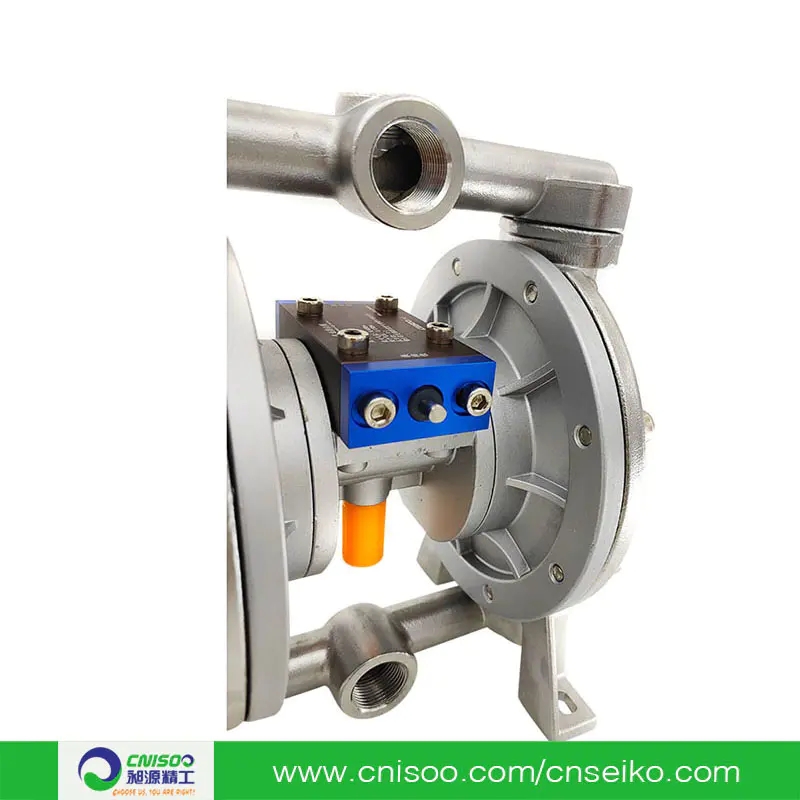

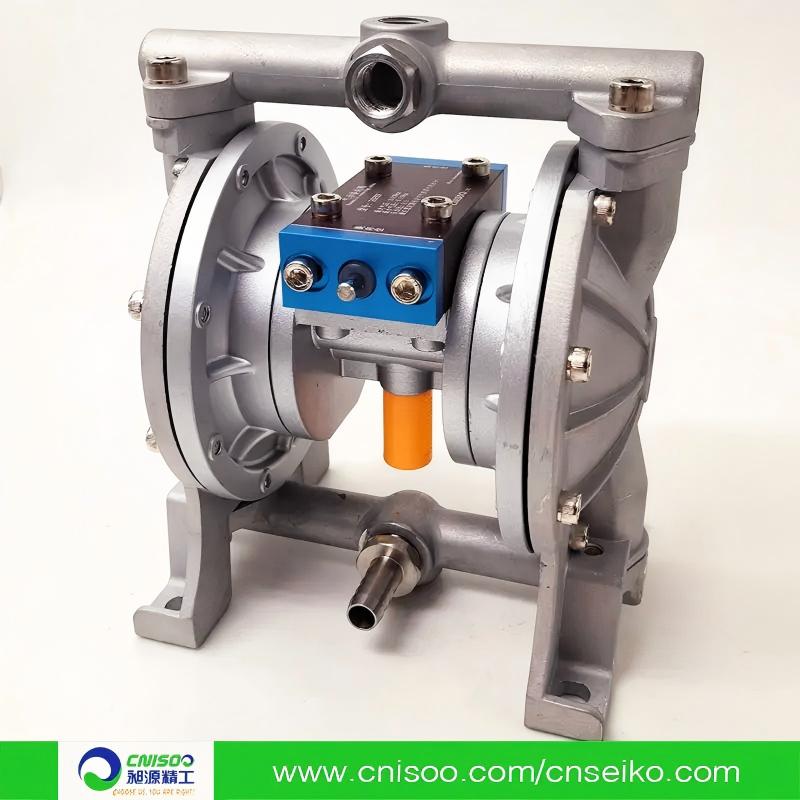

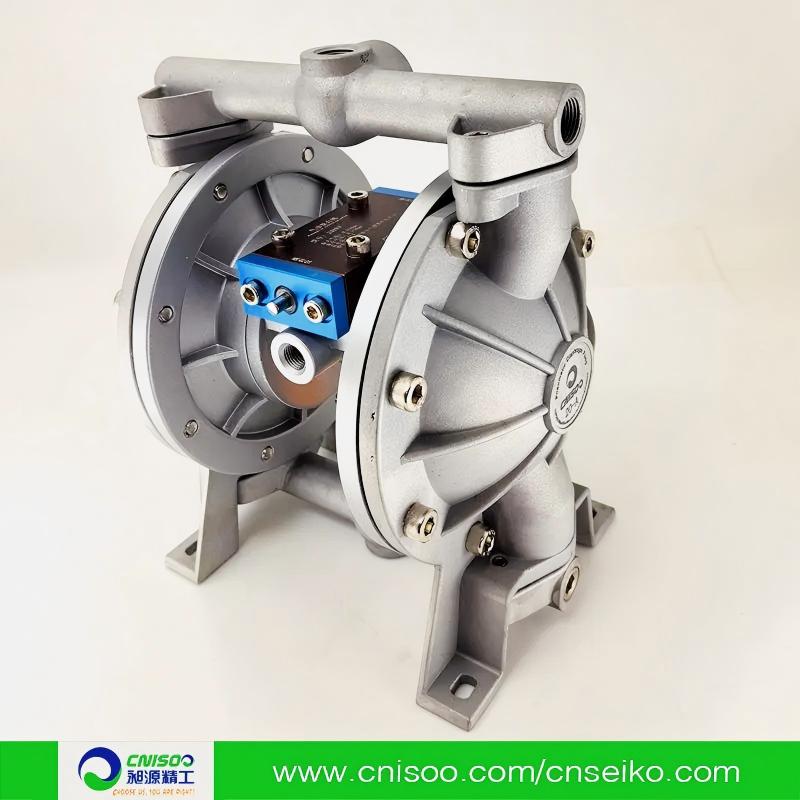

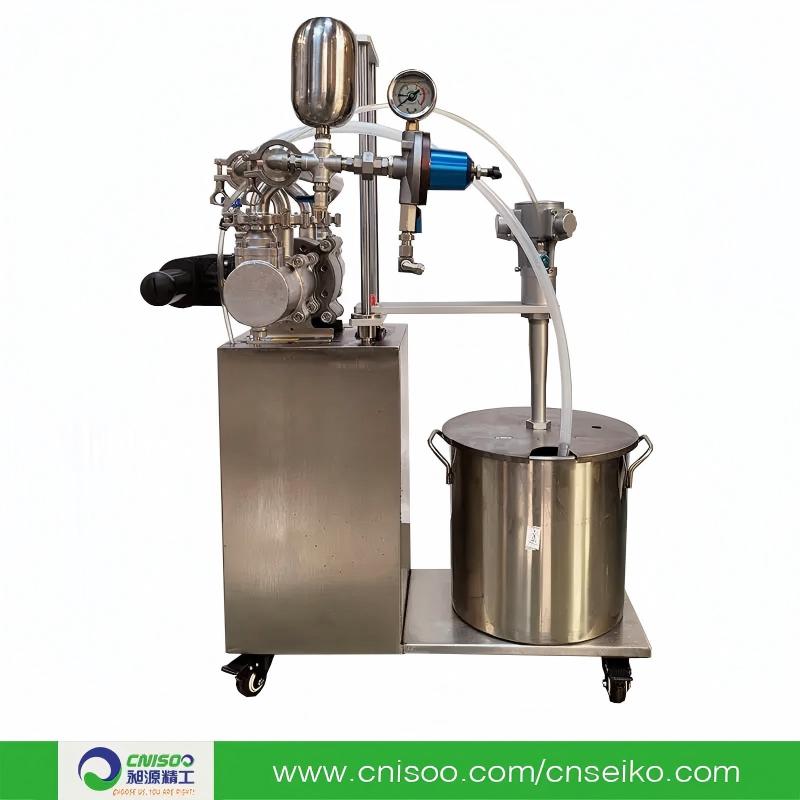

Air operated double diaphragm pumps

Model:: 16A

USD Unit Price:: 200

MOQ:: 10Pcs

Payment:: Cash on delivery

Delivery Time:: Lssued in 2 hours

Inquire Online
Download

Cancel

PRODUCT FEATURES

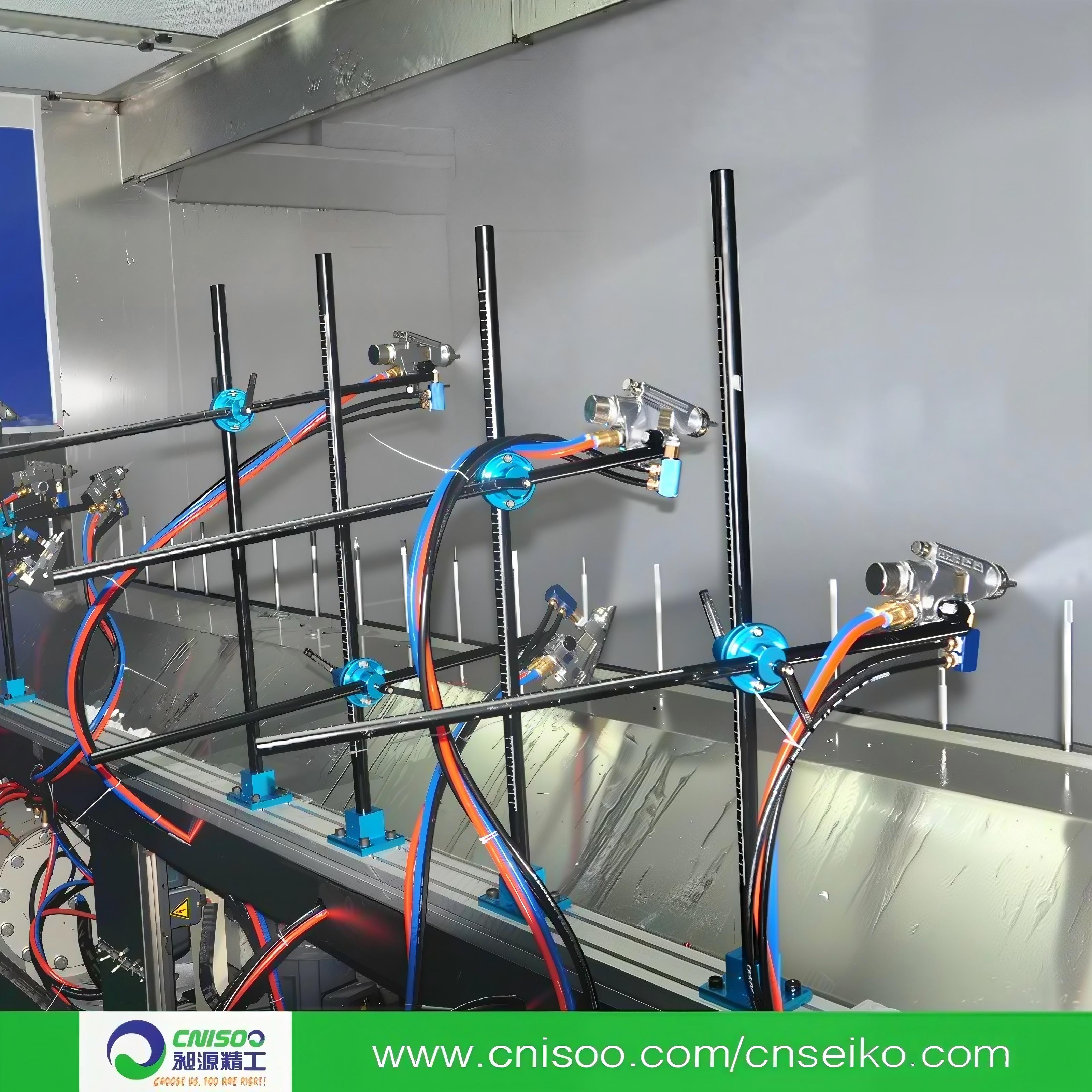

The pneumatic double diaphragm pump has simple structure and excellent durability, and can be used for various purposes from small amount painting to installation of multiple spray guns and coating transportation.

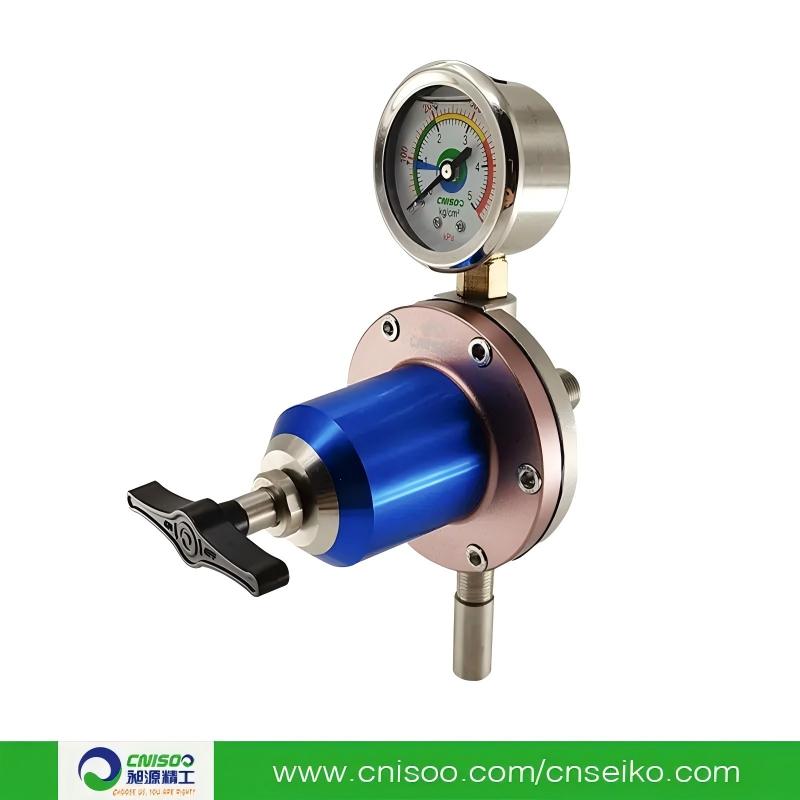

The paint pressure regulator ensures stable supply and achieves high quality spraying effect.

The diaphragm pump uses compressed air as the power source, by the reciprocating deformation of the volume change volume pump. Use it for each corrosive liquid.

PRODUCT PARAMETER

Mode	16A
Main Body Material	Aluminum Alloy/Stainless Steel
Air Inlet Size	G1/4
Liquid Inlet Size	G3/8
Liquid Outlet Size	G3/8
Air Pressure	0.15~0.7MPa
Best Air Pressure	0.3~0.4MPa
Pressure Ratio	1:1
Max. Output	18L/min
Max. Size for Output Particle	1. 5mm
Temperature	5~40℃

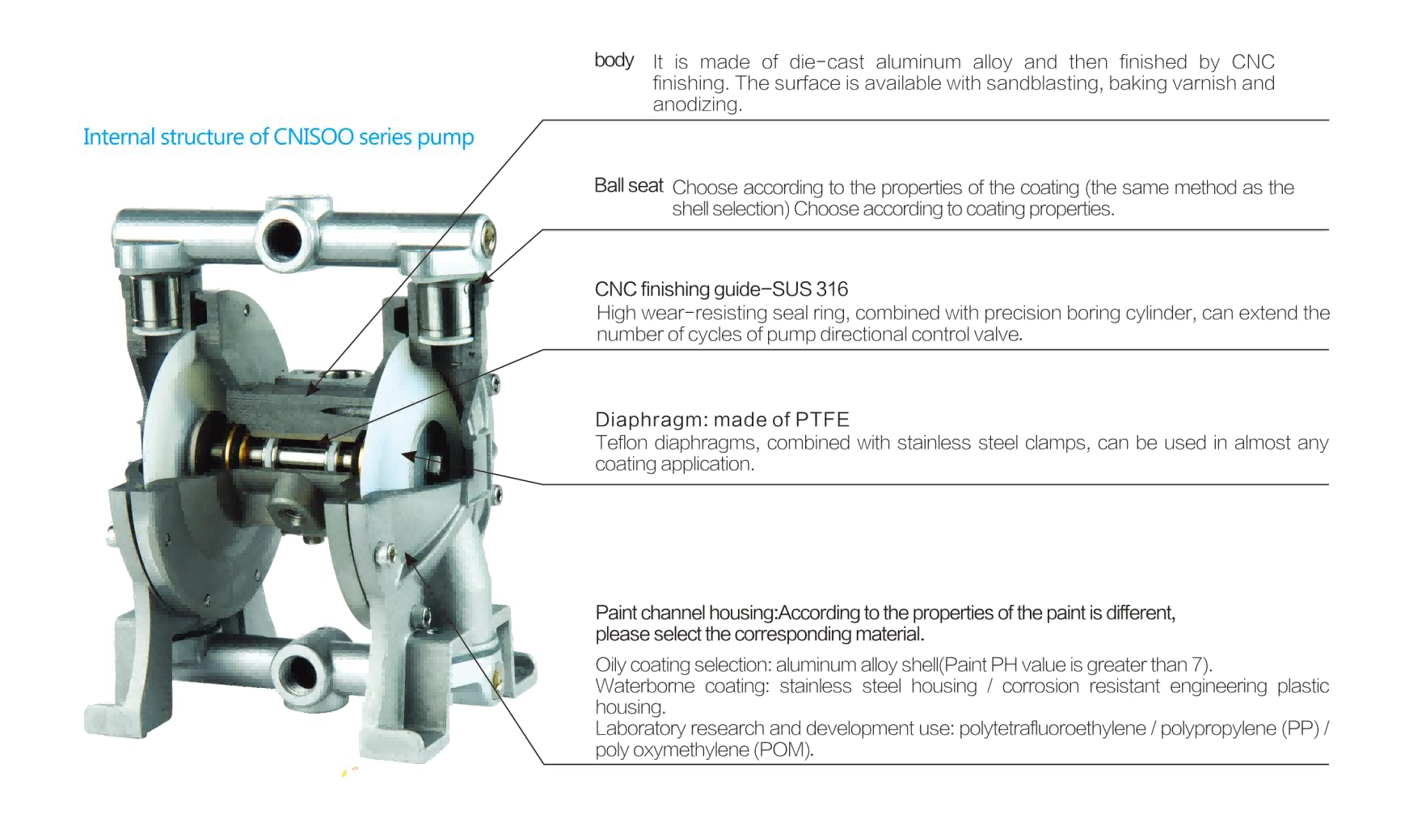

Product Features

The air operation valve of the double spool mechanism in the stable supply model has been improved to use the commutation more smoothly and reduce the commutation generating artery.

The liquid part of the pump body is made of aluminum and stainless steel.

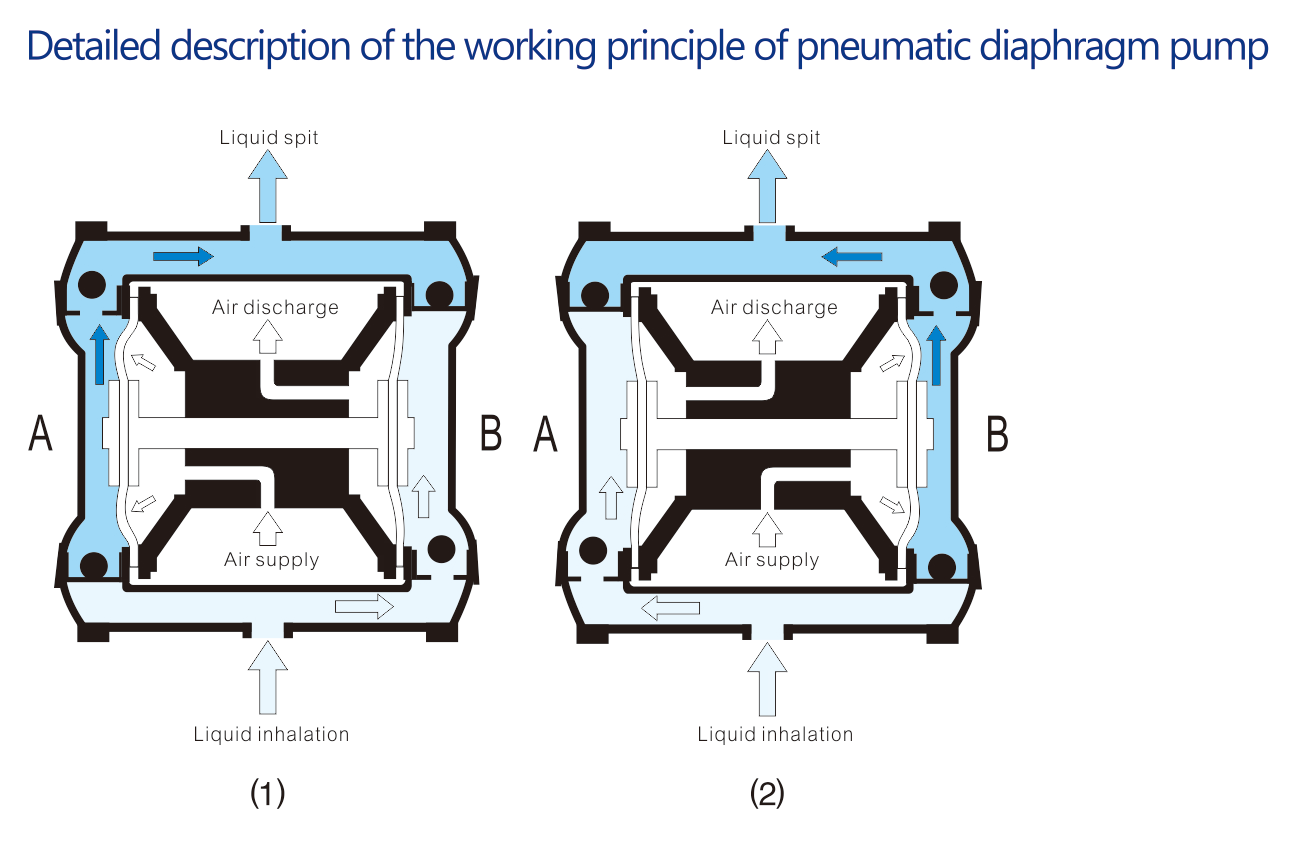

Working principle

▶ By moving the 2 diaphragm pump connecting rods mounted on both ends of the rod, the pump body is pressed to spit out the liquid, and the construction is simple.

▶ Compressed air enters the air chamber on the A side of FIG. 1, the diaphragm pump is pressed to the left, and the liquid is extruded.At this point, the B-side diaphragm pump connected by the rod moves to the left to inhale the liquid.

▶ At this point the B-side diaphragm pump attached to the rod moves to the left and draws in liquid.

▶ The air valve switches when the lever is moved to the far left.

▶ Compressed air enters the air chamber on the B side of Fig. 2, the diaphragm pump presses to the right, and the liquid is extruded.

▶ At the same time, the A side inhales fluid. The above action is repeated, inhaling/exhaling continuously, and it is able to exhale steadily without pulsation.
