Spray Gun Accessories Spray Gun Regulator Spray Gun Air Adjusting Valve

Model:: PRV-16

USD Unit Price:: 1650.00

MOQ:: 10Pcs

Payment:: Cash on delivery

Delivery Time:: Lssued in 2 hours

Inquire Online
Download

Cancel

PRODUCT FEATURES

Pressure regulating valve also known as (pressure regulating valve), pressure reducing valve is used to control the opening of the valve body of the opener to adjust the flow of the medium, the pressure of the medium to reduce, at the same time with the role of the valve after the opening of the valve, so that the valve after the pressure to keep in a certain range, in the case of the inlet pressure is changing, keep the outlet pressure in the set range of painting tools.

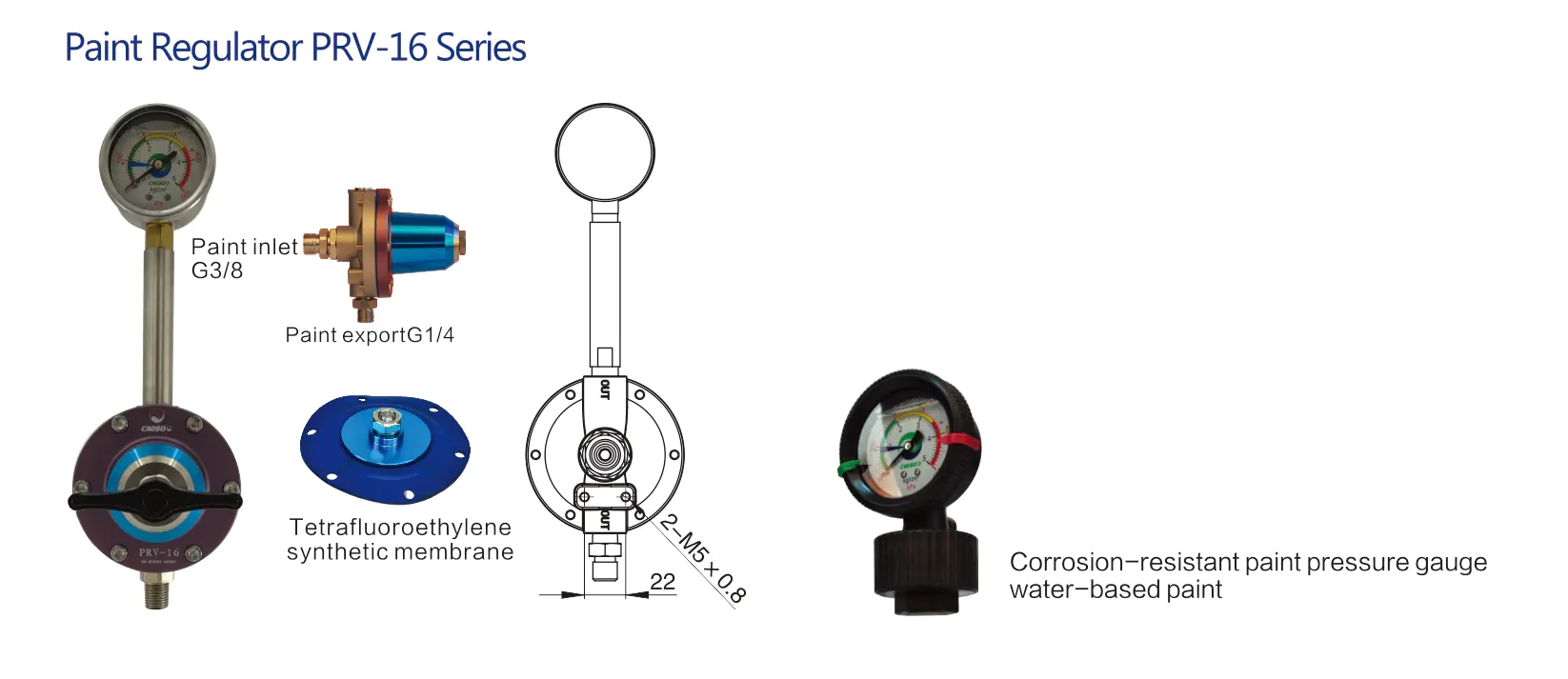

The liquid part of the main body is made of 304 stainless steel, PTFE diaphragm material, pressure adjustment range 0 to 0.5Mpa, maximum flow 2L/min, maximum pressure 2.5Mpa, paint inlet G3/8, paint outlet G1/4.

Pneumatic paint pressure reducing valve for remote control of paint pressure and discharge.

PRODUCT PARAMETER

Model	PR-5B	PRV-16
Main Material	Aluminum	Stainless Steel 304
Ari Pressure	0～0.6MPa
Max. Output	2.0l/min
Max.Air Pressure	2.5MPa
Liquid lnlet	G3/8B (Outer Screw Pf3)
Liquid Output	G1/4B (Outer Screw Pf1)
Dimensions	84x165x260mm
Weight	850g	1020g
lnstallation Size	2-5x0.8, Threand Depth) 8mm, 3-l=22mm

Product details

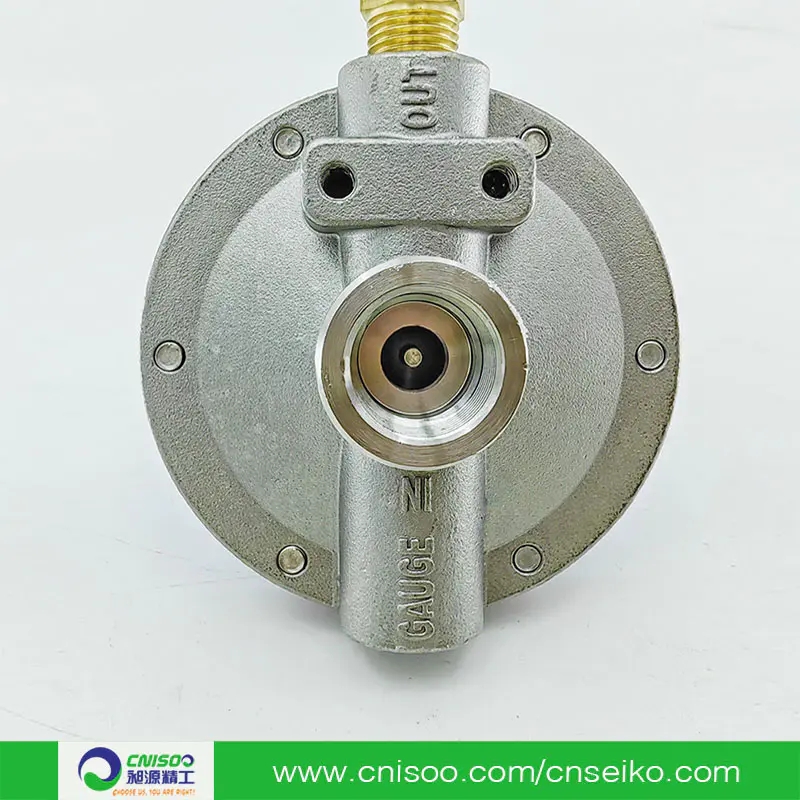

It is a diaphragm type of paint pressure reducing valve, to maintain the stability of the paint pressure, the amount of spit, the coating film thickness uniformity and other coating quality management, the main part of the liquid through mirror processing, improve the cleaning performance.

The back pressure valve realizes the action through the elasticity of the built-in spring: when the system pressure is smaller than the set pressure, the diaphragm plugs the pipeline under the action of the spring elasticity; When the system pressure is higher than the set pressure, the diaphragm compresses the spring, the pipeline is connected, and the liquid passes through the back pressure valve, which is similar in structure to the check valve, but the opening pressure is greater than the check valve, in 0.2 to 1.6 mpa.

The diaphragm type coating pressure reducing valve can realize the uniformity of the coating thickness, ensure the coating quality, the paint pressure and the discharge volume remain constant.

The environment for painting by robot or reciprocating machinery is installed in the attachment of the automatic spray gun to eliminate the fluctuation of the drawing quantity caused by the height difference.

The R4/R8 model is designed to be a diaphragm of the air chamber and the coating chamber pressure area there is a certain difference in a small amount of regulation.

Adjust the amount of paint spit according to the conditions of use, and supply under certain pressure. It is most suitable for spraying with uniform coating thickness and strict spraying quality control.

The paint adjustment is correct, the reliability is high, and the paint supply is stable.

Small and light weight, easy to use, simple installation of paint piping.

Superior durability, fewer parts, easy maintenance.

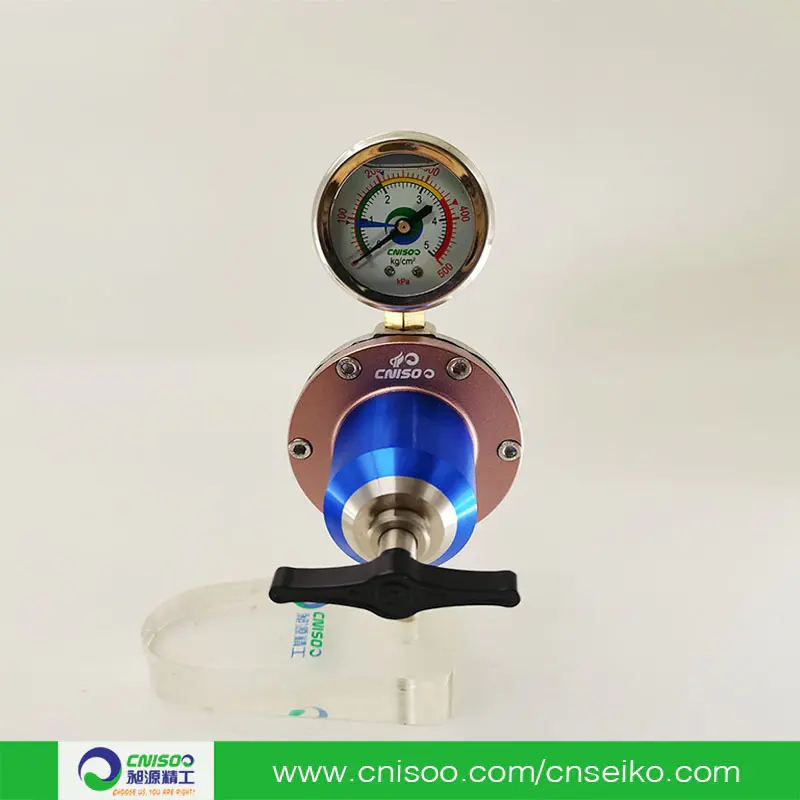

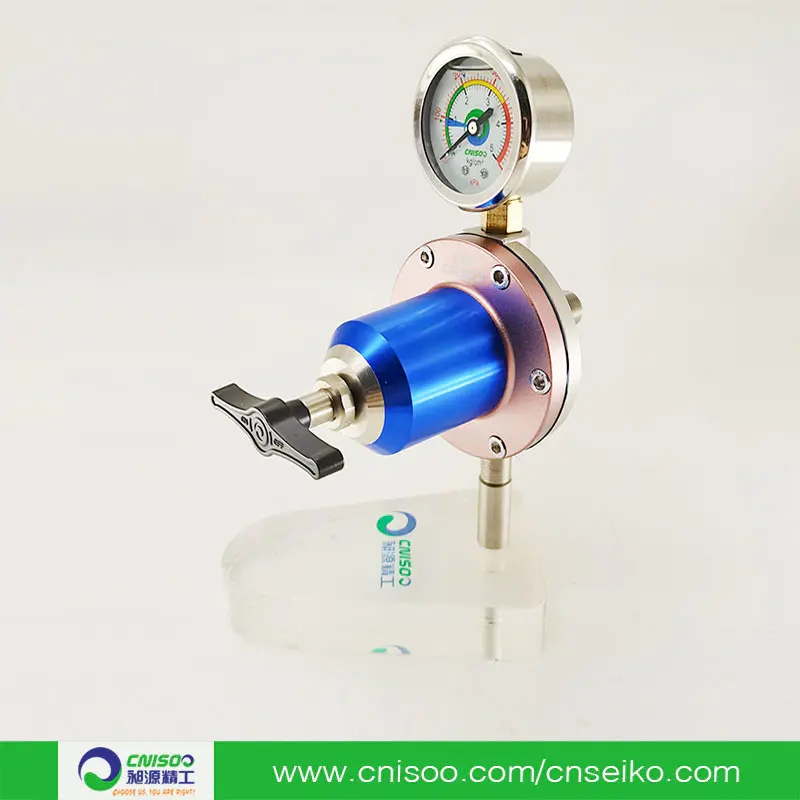

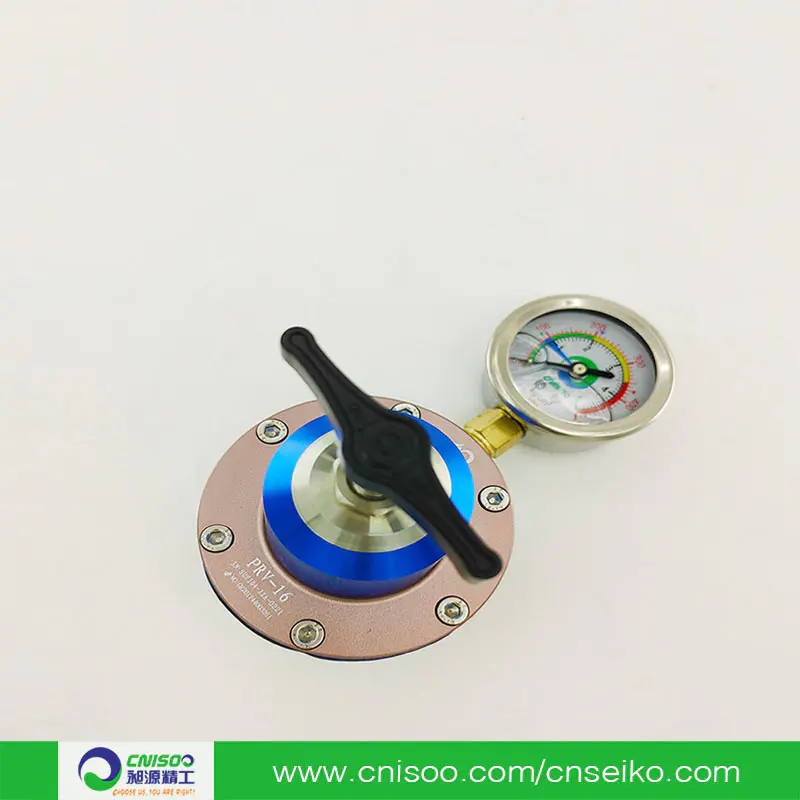

The PRV-16 comes in stainless steel specifications.
